Operate running processes

Everything a running process does is stored in PostgreSQL first and shown in Studio second. This page is the operator’s guide: where to look, what each state means, and how to unblock an instance.

The Operations view

Operations lists every instance of the open project. The counters show what is running, what finished in the last day and what needs intervention (failed instances plus open incidents); the worker strip shows each agent worker and its last heartbeat, and the Incidents strip lists the open incidents.

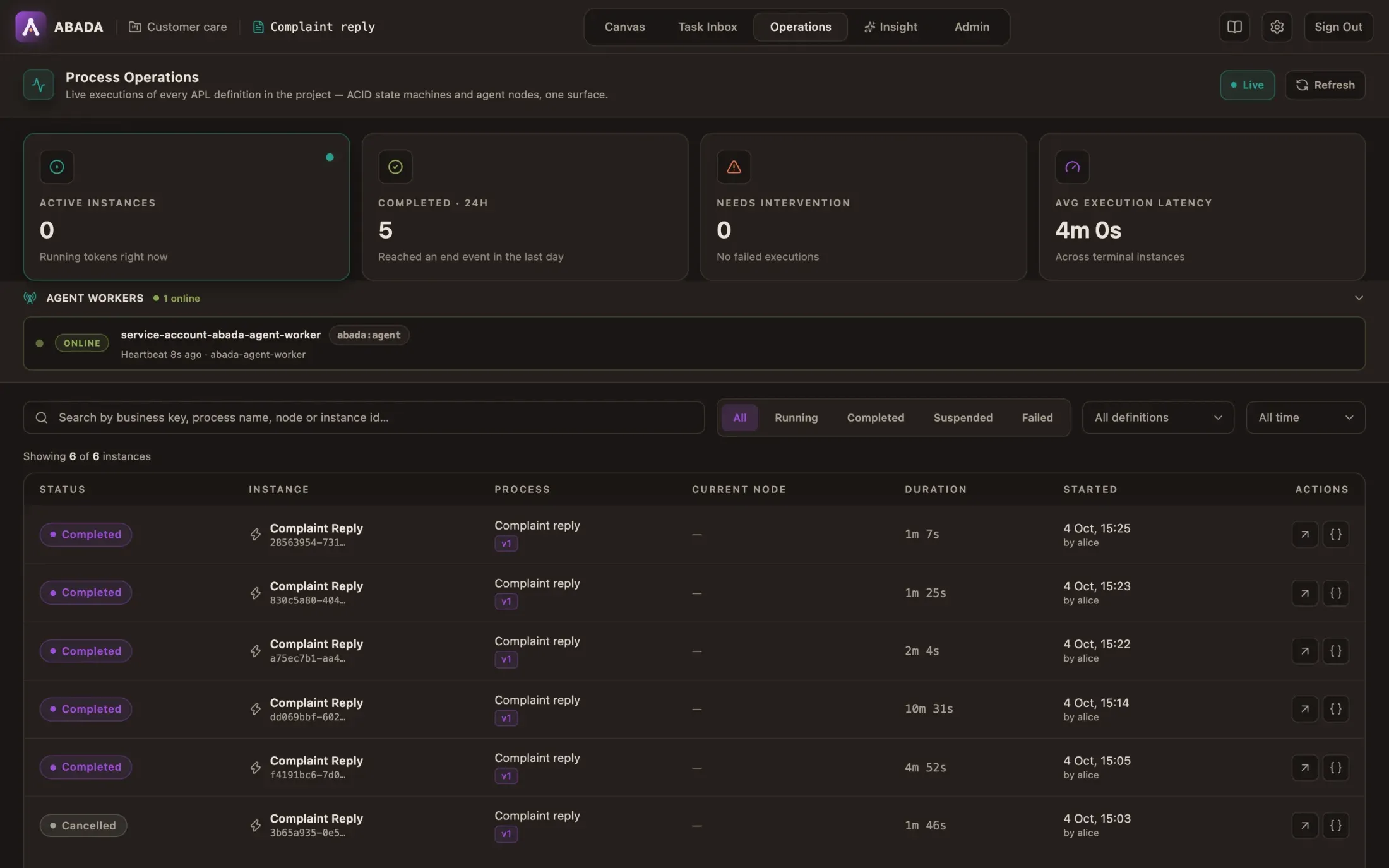

Operations: instance counters, the agent worker online, and the instance list with status, process, version, duration and starter

Filter by status (Running, Completed, Suspended, Failed), definition or time range, or search by instance id, process or node.

Worker state	Meaning
Online	The worker polled recently
Error	Its last fetch was rejected (identity, permission or configuration)
Offline	No recent heartbeat

One instance

Open an instance to see the path it took on the canvas and three tabs:

Telemetry — for the selected step: its configuration and, for an agent, each attempt: model and provider, attempt number, latency, confidence against the threshold, the output contract result, token counts, prompt hash and worker. When a fallback model answered, Fallback for names the model it replaced.
Variables — the current process variables.
Audit Trail — every event in order, with its actor: process started, jobs locked and completed by workers, tasks claimed and completed, and the route a step took (outcome reject → draft, timeout → triage). Click an event for its details.

A completed instance: the taken path, including the way back to Draft, and the audit trail

The engine stores attempt metadata only — never prompts, model responses or provider keys.

Instance actions

Action	In Studio	Effect
Suspend / Resume	Instance header	A suspended instance accepts no completion; late worker reports are rejected and retried after resume
Cancel	Instance header	Ends the instance and retires all its open work (tasks, jobs, timers) in one transaction
Retry a failed job	Failed step in the inspector	Gives the job one more attempt and resolves its `WORK_FAILED` incident
Retry an incident	Incidents strip (Operations or the instance)	Restarts the stopped step; see Incidents

The same actions exist under /api/v1/projects/{projectId}/instances/{instanceId} (DELETE to cancel, PUT …/suspension) and /api/v1/projects/{projectId}/jobs/{jobId}/retries.

Incidents

An incident stops one path of an instance until someone acts. The rest of the instance — other branches, timers — keeps going.

Incident	Cause	Fix
`WORK_FAILED`	A step’s last attempt failed and the step has no `on_error`	Fix the cause (provider key, quota, worker), then retry
`LOOP_EXHAUSTED`	A loop reached `max_iterations` and has no `on_exhausted`	Retry (the step starts a fresh pass) or cancel
`MISSING_CORRELATION_KEY`	A message wait has no `correlationKey` value	Set the variable, then retry

In Studio

The Incidents strip in Operations lists the open incidents of the project, newest first: kind, step, instance, when it opened and the engine’s message. An instance’s page shows the same strip with only its own incidents, and only while it has one.

Retry restarts the step: failed work is reopened with a fresh attempt budget, an exhausted loop starts a fresh pass, a message wait is armed again. The incident leaves the list once the engine has resolved it; if the engine refuses the retry, its reason is shown on the incident.

Retry is an Operator or Owner action on the project. Other members see the incidents without the actions; the engine enforces the same rule on the API.

Through the API

List and retry them through the project API:

# Open incidents of a project
curl "$ABADA_URL/api/v1/projects/$PROJECT_ID/incidents" -H "Authorization: Bearer $TOKEN"

# Retry one
curl -X POST "$ABADA_URL/api/v1/projects/$PROJECT_ID/incidents/$INCIDENT_ID/retry" \
  -H "Authorization: Bearer $TOKEN"

Retry an agent step on another model

When a provider is down or out of quota, an operator can retry a failed agent step on another allowed model, for that task only; the deployed definition is unchanged. The reason is required and recorded with the old and new model and the operator in the history (INCIDENT_RETRIED).

In Studio, a WORK_FAILED incident on an agent step offers Retry on another model: pick a model from the engine’s allow-list (the step’s current model is left out), give the reason, and confirm. The option is not offered for other incidents or steps, which the engine would reject.

Through the API:

curl -X POST "$ABADA_URL/api/v1/projects/$PROJECT_ID/incidents/$INCIDENT_ID/retry" \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{"model": "gemini-3.7-flash", "reason": "provider quota exhausted"}'

Only project Operators and Owners may retry.

Waiting is not failing

Some states look stuck but are working as designed:

You see	What it means
An agent step stays active, no attempt yet	No worker is online, or no AI provider serves the model. Nothing is lost; the step runs when a worker can take it
`EXTERNAL_TASK_DEFERRED` in the history	Every model of the step is rate-limited or unavailable. The attempt waits and retries without using up `max_attempts`; `on_timeout` bounds the wait
A human task marked as escalated	It passed its `sla_hours`; the `escalate_to` groups can claim it too. It is still open
Two attempts on one agent step	A worker died or lost its lease; another worker took the task. The engine advanced the process once

Loops, routes and review decisions — where each route comes from.
Agent nodes and the Agent Worker — providers, models and worker configuration.
Troubleshooting — platform-level problems.
